※ Features of the system structure design:
（1）Vertical clamping, dual-injection system, suitable for the molding of products requiring dual-color or dual-material plastics;
（2）The injection system adopts an integrated dual-cylinder design, ensuring smooth movement and high injection accuracy;
（3）Dual hydraulic systems: separately control the two injection units;

※ Electrical control features:
（1）Taiwan TECHMATION electrical controls;
（2）Linear displacement electronic scales control the clamp and injection systems, making settings convenient and ensuring product precision;
（3）Barrel temperature control uses a P.I.D temperature control system;

※ Process features:

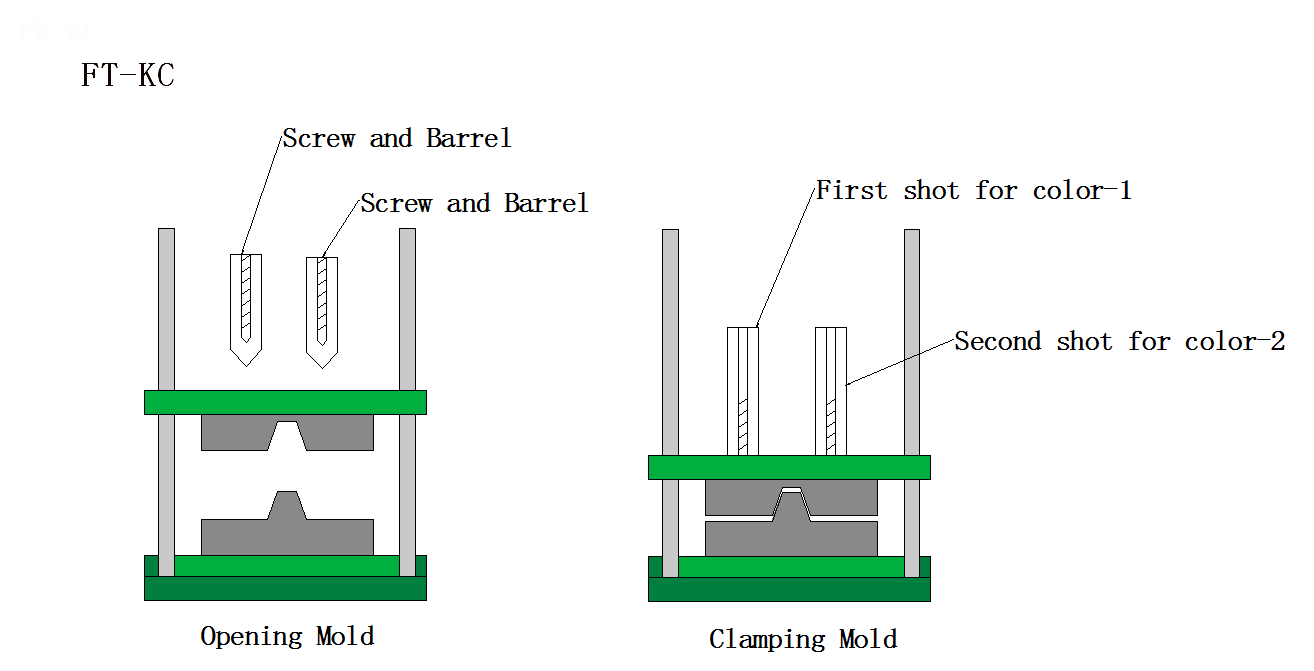

（1）Clamping → First platen advances (second platen advances) → First platen injection (second platen injection) → First platen holding pressure (second platen holding pressure) → First platen metering (second platen metering) → First platen retract (second platen retract) → First platen seat retreat (second platen seat retreat) → Molding opening → Ejector advance → Ejector retract. Note: Parameters for the two injection units can be set independently.

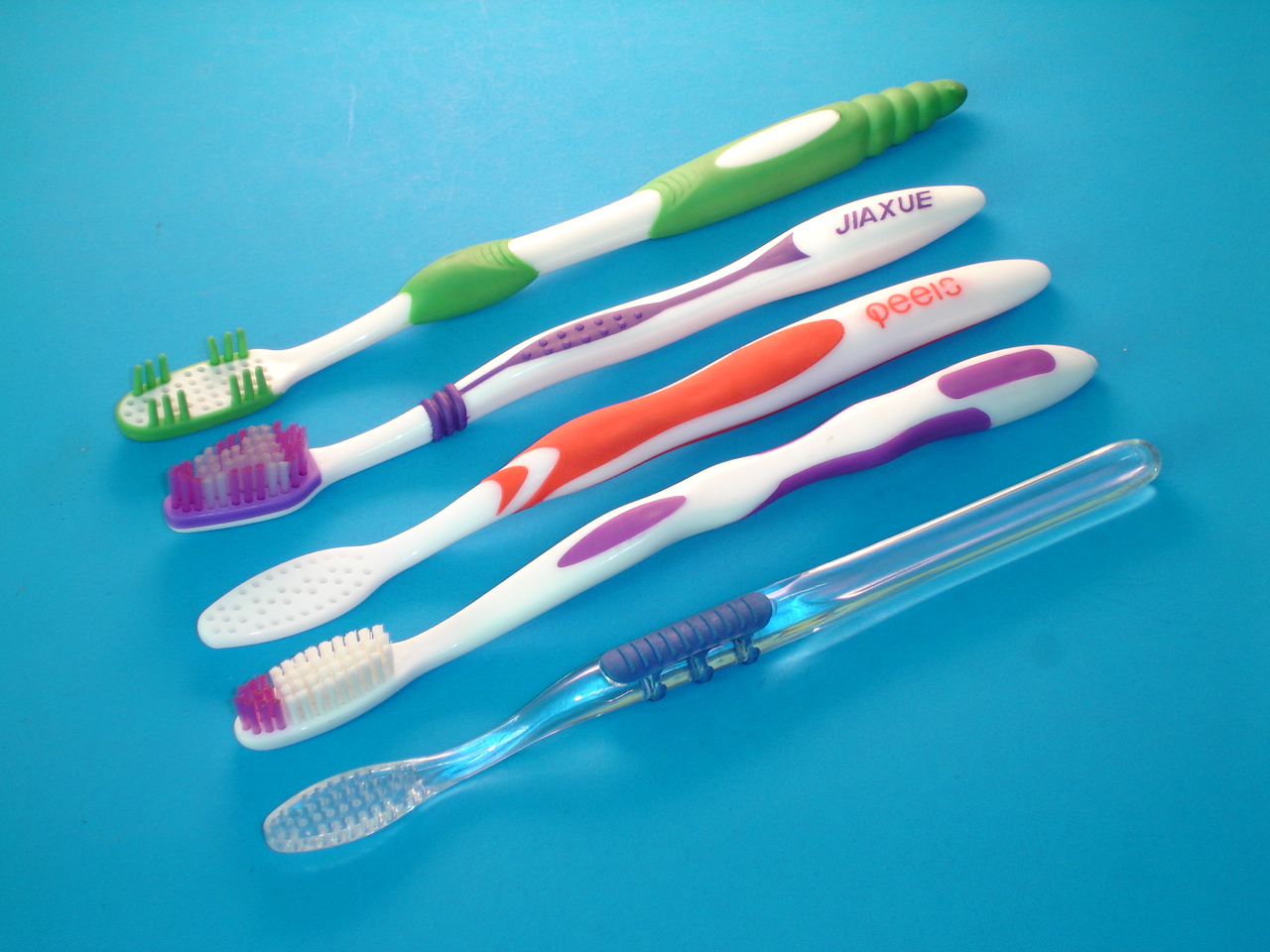

※ Engineers Recommend: Dual-color overmolded toothbrush products are suitable for production using this type of injection machine, with inserts placed longitudinally and both materials injected into the mold cavity simultaneously.
