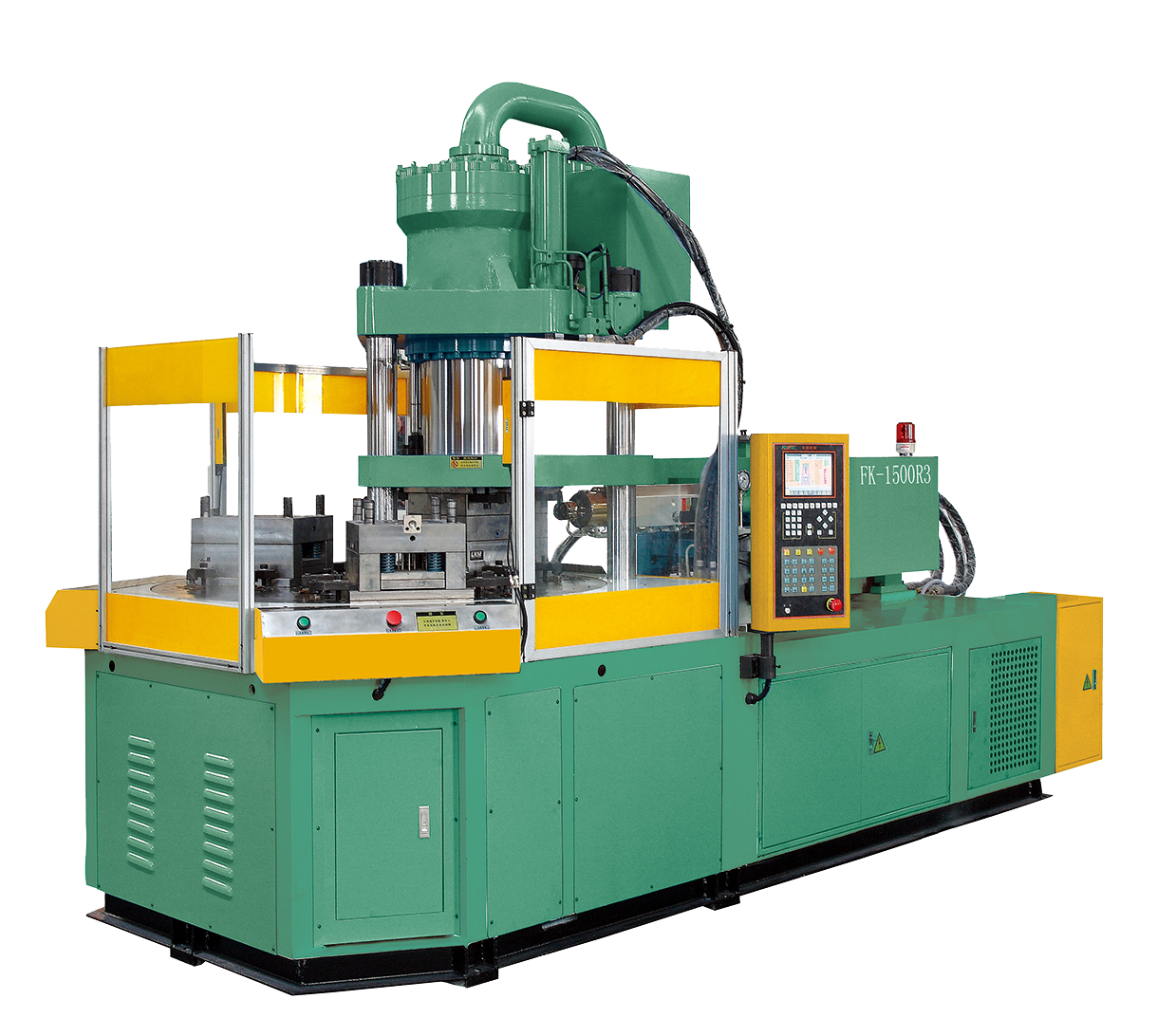

1. Upright lock mold and horizontal injection mechanism design, suitable for the molding of plastic products with long-handle inserts.
2. Ergonomically designed workbench height and dual slider configuration, making mold installation and removal convenient, operation comfortable, thus improving operator efficiency and safety.
3. Equipped with an 8-inch display screen, showing various functions clearly and storing up to 200 sets of module molding parameters.
4. Pressure-over-flow hydraulic circuit design.
5. The injection system adopts a dual-shot cylinder, dual-seat cylinder, and dual-guide pillar design, ensuring smooth movement and high injection precision.
6. Feeding uses a five-star motor, capable of meeting different requirements for high torque or high speed.
7. The lock mold mechanism adopts a dual-fast-cylinder design, achieving smooth, fast operations, and easy maintenance.
8. The moving parts between the platen and machine columns use high-rigidity bronze bushings, ensuring smooth movement, low contamination, and a long service life.
9. Injection and clamping are controlled by electronic scales, with multi-stage pressure and speed adjustments that can be set according to product requirements, ensuring product precision.
10. High-precision P.I.D. temperature control ensures stable temperature in each section with minimal error.

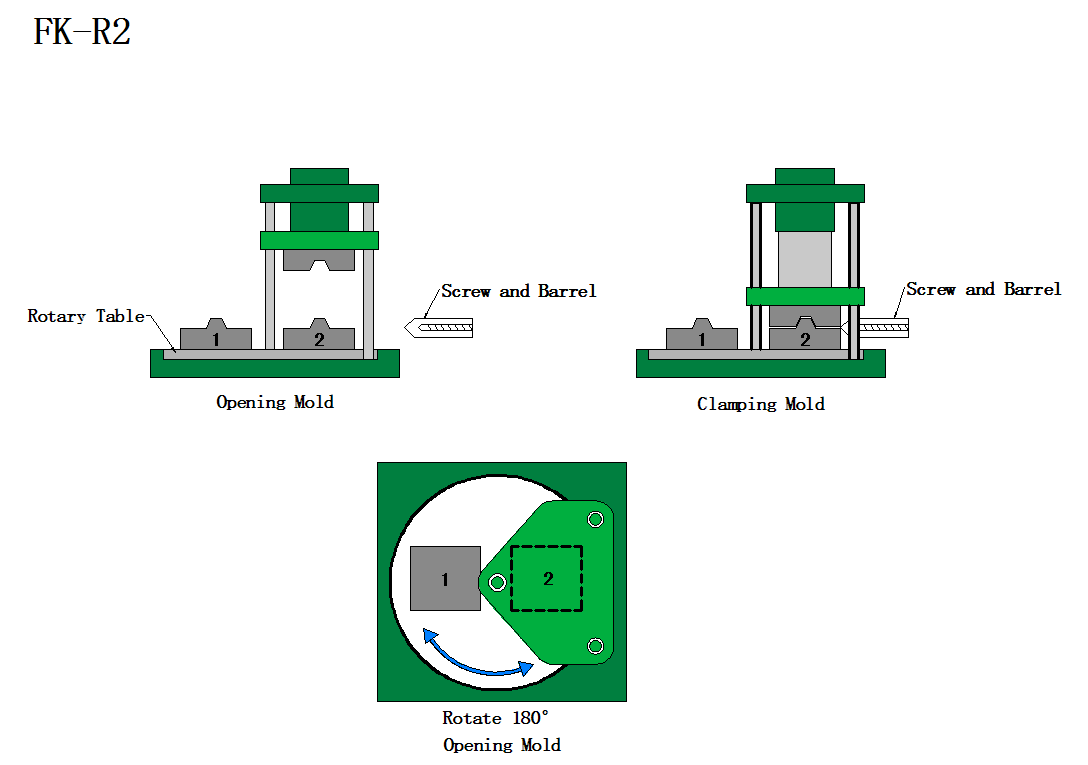

11. Dual-station (or triple-station) rotating worktable, providing stable rotation and accurate positioning, potentially increasing production efficiency by 30% to 50%.
