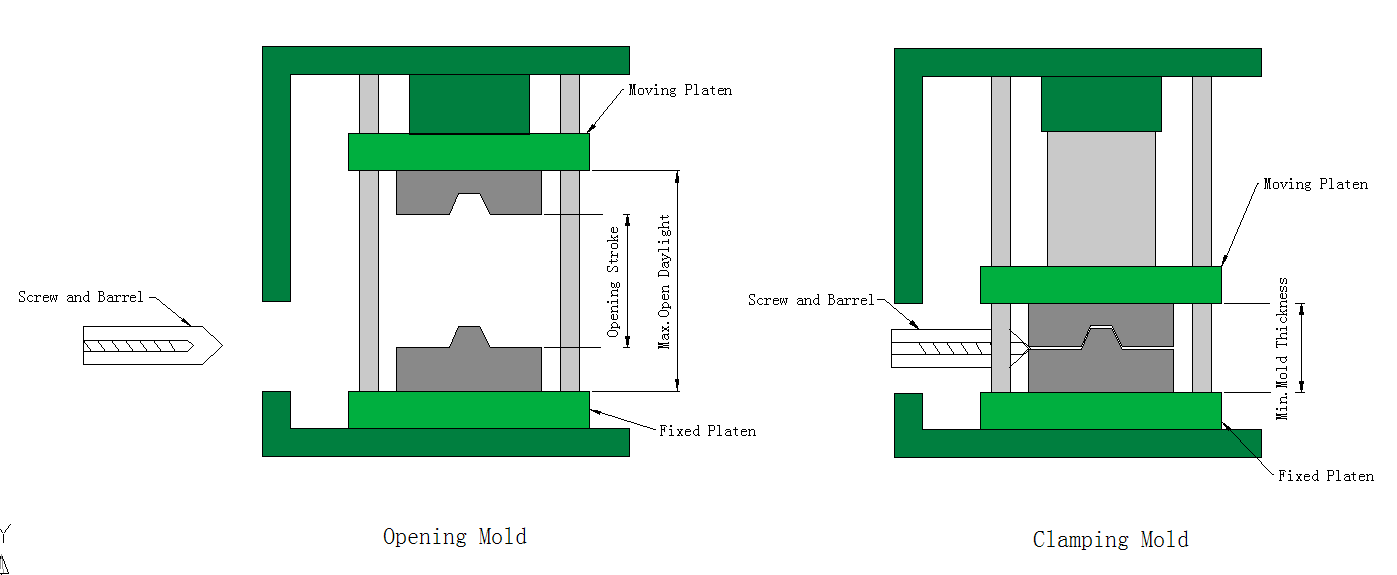

1. Vertical clamping, horizontal injection design suitable for the molding of plastic products with long-stemmed inserts.
2. Ergonomic table height design and dual slide plate configuration make mold installation and removal convenient, improving operator efficiency and safety.
3. An 8-inch display is used, with clear and precise function displays, storing up to 200 sets of module forming parameters.
4. Pressure over flow hydraulic circuit design.
5. The injection system adopts a dual-shot cylinder, dual-seat cylinder, and dual-guide post design, ensuring smooth movement and high injection precision.
6. Feeding uses a five-star motor, capable of meeting different requirements for high torque or high speed.
7. The clamping mechanism uses a dual quick cylinder design, achieving smooth, fast operation, and easy maintenance.
8. Moving parts between the platen and machine columns use high-rigidity bronze bushings, ensuring smooth movement, low contamination, and long service life.
9. Injection and clamping are controlled by electronic scales, with multi-stage pressure and speed adjustment, adjustable according to product requirements, ensuring product precision.
10. High-precision P.I.D. temperature control ensures stable temperature in each section with minimal error.
