1. Upright clamping, horizontal injection design suitable for the molding of plastic products with long-handled inserts.

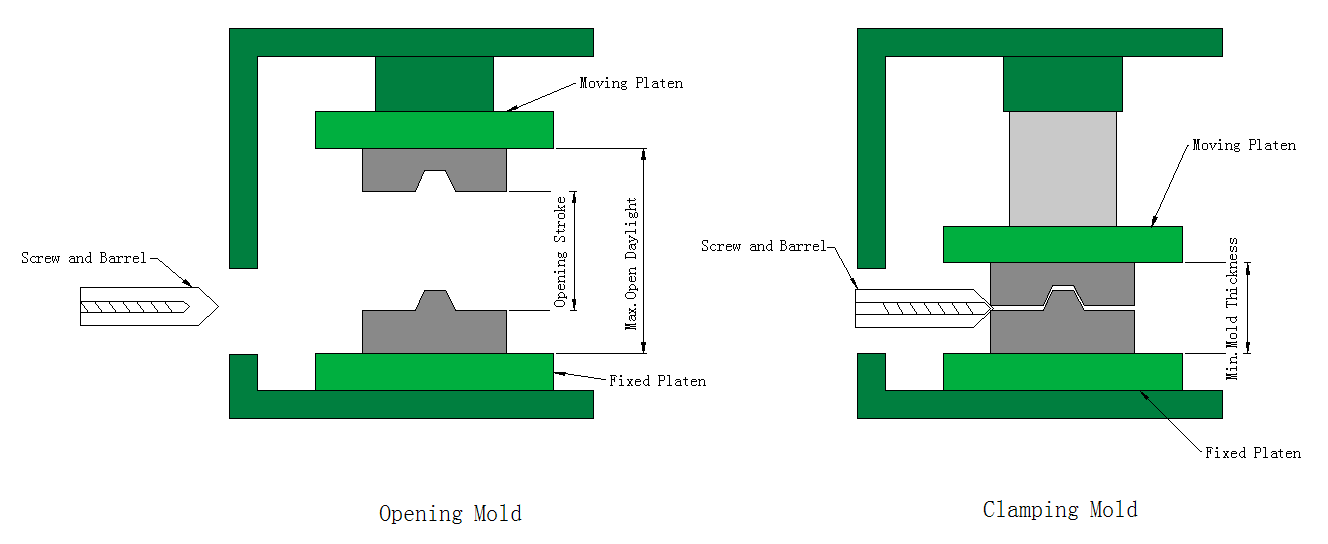

2. The clamping unit uses a C-frame structure without tie-bars, offering open access from three sides of the platen, making insert placement and part removal easier.
3. Ergonomically designed worktable height for comfortable operation, enhancing operator efficiency and safety.
4. Equipped with a 7-inch display screen for clear and precise function displays, with memory storage for 66 sets of module molding parameters.
5. Hydraulic circuit design for pressure and flow rate control.
6. Injection system employs dual cylinders, dual seats, and dual guide pillars for smooth movement and high injection accuracy.
7. Feeding is accomplished using a five-star motor capable of meeting different requirements for high torque or high speed.
8. Injection and clamping are controlled by electronic scales, allowing multi-stage pressure and speed adjustment to be set according to product requirements, ensuring product precision.
9. High-precision P.I.D. temperature control ensures stable temperature in each zone with minimal error.
10. Reinforced slider machine frame design ensures more precise and stable shuttle movements. Mold installation and removal are convenient and safe, significantly increasing output and efficiency.

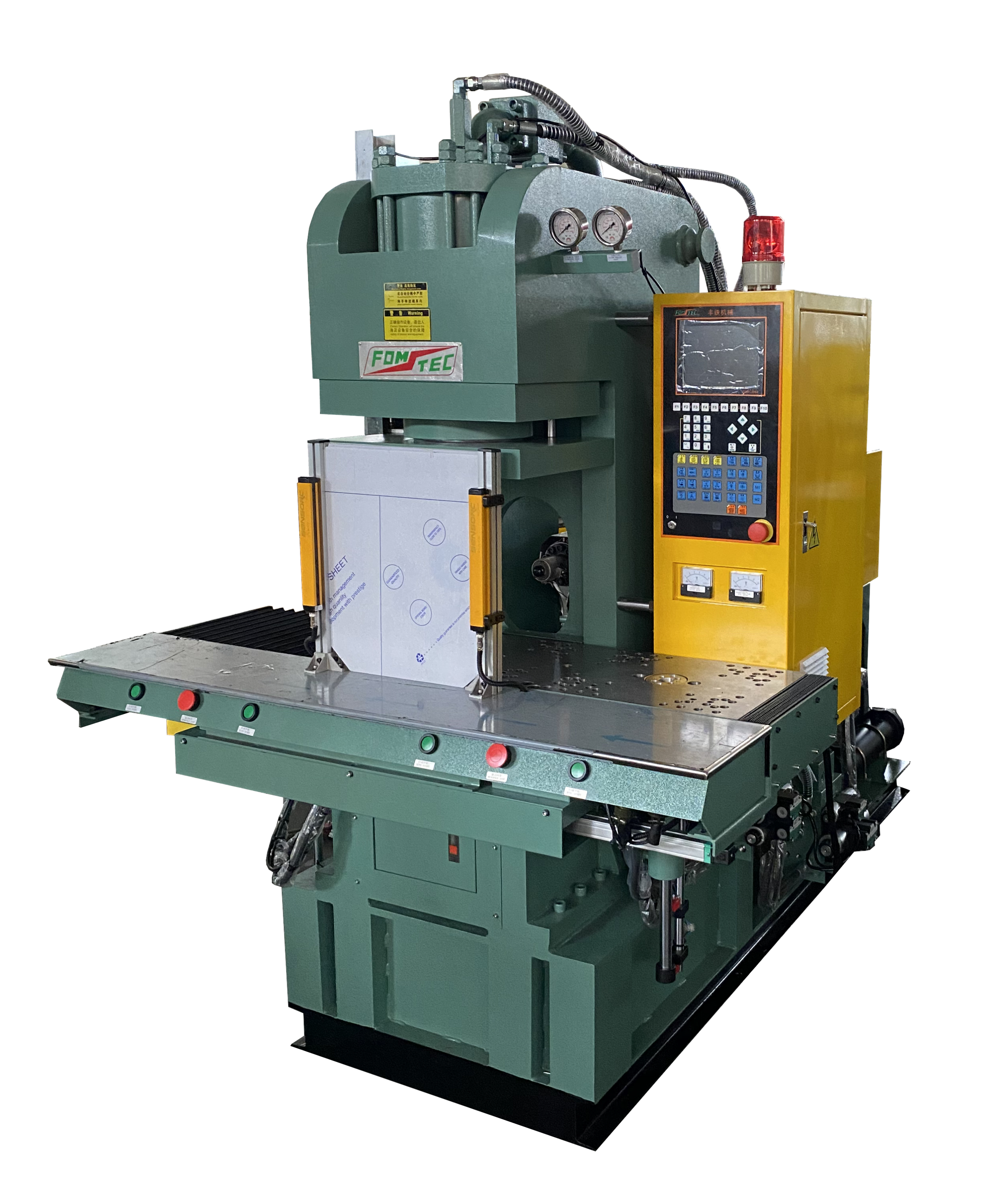

11. Dual-station slider with two lower molds alternating on the same plane, allowing one mold to form while the other is used for part removal, enhancing operational safety and improving efficiency by 30-50%.
